Hastelloy C276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments.
The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures.

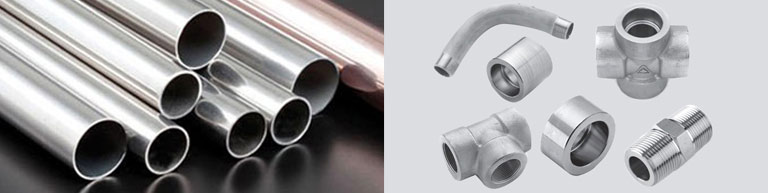

In what form is Hastelloy C276 Available at Ramdev Steel Engineering
- Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)
- Flanges
- Wire
Chemical Properties
| C | Cr | Co | Fe | Mn | Mo | Ni | P |
|---|---|---|---|---|---|---|---|
| .010 max | 20-22.5 | 2.5 max | 2.0-6.0 | .50 max | 12.5-14.5 | Balance | .02 max |
| Si | S | W | V | ||||
| .08 max | .02 max | 2.5-3.5 | .35 max |
ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting | Wire |
|---|---|---|---|---|---|---|---|---|
| B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 |
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
| Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
|---|---|---|---|
| Bar | 110.0 | 52.6 | 62 |
| Plate | 107.4 | 50.3 | 67 |
| Sheet | 115.5 | 54.6 | 60 |
| Tube & Pipe | 105.4 | 45.4 | 70 |
