Stainless Steel 904L is stocked by 23 North American distributors and produced by 28 large mills. Distributors will offer small quantity buys while mills will generally only sell large quantities, with delivery times anywhere from 10 to 50 weeks depending on size and form required This material is stocked primarily in Flat Rolled Products by 10 distributors but is also available to a lesser extent in Tubular Products, Wire Products, Piping Components, Bar Products, and Structurals.
The following specifications cover Stainless Steel 904L
- AFNOR Z2CNDU 25-20
- ASTM B625
- ASTM B649
- ASTM B673
- ASTM B674
- ASTM B677
- DIN 1.4539
- UNS N08904
Property Results
Related Metals:- VLX904(tm)
- AL 904L(tm)
- Cronifer 1925 LC(tm)

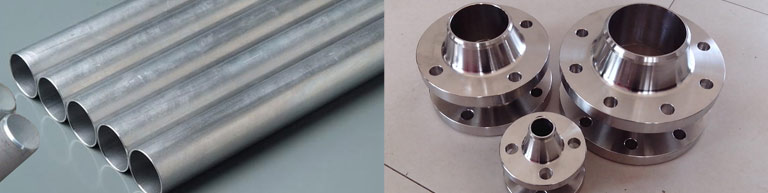

In what form is Stainless Steel 904l available at Ramdev Steel Engineering?
- Bar
- Wire
- Sheet
- Plate
- Forgings
- Pipe
- Flanges
Chemistry Data
Chemical Composition ranges of 904L stainless steel
| Carbon | 0.02 max |
| Chromium | 19 - 23 |
| Copper | 1 - 2 |
| Iron | Balance |
| Manganese | 2 max |
| Molybdenum | 4 - 5 |
| Nickel | 23 - 28 |
| Phosphorus | 0.045 max |
| Silicon | 1 max |
| Sulphur | 0.035 max |
Principal Design Features
904L is an austenitic stainless steel designed for moderate to high corrosion resistance. Its low carbon content improves cleanliness and weld strength.
Applications
Utility scrubber assemblies, acid and fertilizer production equipment.
Machinability
Slow speeds and positive feeds will minimize this alloy's tendency to work harden and glaze. Use chip breakers where possible to overcome problems with long draggy chips.
Welding
Most common fusion and resistance methods may be employed. For maximum corrosion resistance, it is recommended to use filler metals of equal or higher alloy content.
Hot Working
Hot work should proceed after uniform heating to 2000-2200 F. Doe not work the material at less than 1800 F. Full annealing should follow any hot work to reattain maximum ductility and corrosion resistance.
Cold Working
Although higher forces are required, 904L will respond in a similar fashion to other austenitic stainless steels like 304, 316 or 317. Most common operations can be successfully performed.
Annealing
1920-1990 F (1050-1090 C), rapid cooling.
Hardening
This alloy does not respond to heat treatment.. It may only be hardened by cold reduction.
Physical Data
| Density (lb / cu. in.) | 0.285 |
| Specific Gravity | 7.9 |
| Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) | 0.12 |
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 480 |
| Modulus of Elasticity Tension | 28.4 |
Mechanical Data
Form |
Sheet |
|
Condition |
Test Specimen Annealed |
|
Temper |
70 |
|
Tensile Strength |
87 |
|
Yield Strength |
40 |
|
Elongation |
50 |
|
Reduction of Area |
55 |
|
Rockwell |
B79 |
|
