Nickel 200 and Nickel 201 are solid solution strengthened, commercially pure wrought materials with good mechanical properties over a wide range of temperatures and excellent resistance to many corrosives, in particular hydroxides. Nickel 201 was a modification of 200 to control carbon (.02 max) which keeps it from being embrittled by intergranular precipitates at temperatures of 600° F to 1400° F in many processes. Typically, the elemental restrictions of both, nickel 200 and nickel 201, are combined into one, dual-certified chemistry resulting in a single alloy with the desired characteristics of both alloys, Nickel 200/201.

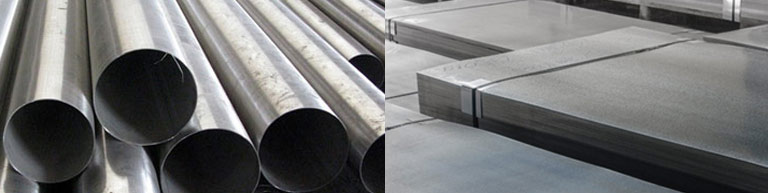

In what form is Nickel 200 Available at Ramdev Steel Engineering.?
- Sheet
- Plate
- Bar
- Pipe & Tube (welded & seamless)
- Flanges
- Wire
What are the characteristics of Nickel 200/201?
- Highly resistant to various reducing chemicals
- Excellent resistance to caustic alkalies
- High electrical conductivity
- Excellent corrosion resistance to distilled and natural waters
- Resistance to neutral and alkaline salt solutions
- Excellent resistance to dry fluorine
- Widely used to handle caustic soda
- Good thermal, electrical and magnetostrictive properties
- Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations
Nickel 200 (UNS N02200) Chemical Composition, %
| Ni | Fe | Cu | C | Mn | S | Si |
|---|---|---|---|---|---|---|
| 99.0 min | .40 max | .25 max | .15 max | .35 max | .01 max | .35 max |
Nickel 201 (UNS N02201) Chemical Composition, %
| Ni | Fe | Cu | C | Mn | S | Si |
|---|---|---|---|---|---|---|
| 99.0 min | .40 max | .25 max | .02 max | .35 max | .01 max | .35 max |
Fabrication with Nickel 200/201
All hot working and cold working practices can be utilized when shaping Nickel 200/201. Hot working temperatures should be between 1200° F and 2250° F with heavy forming to be performed at temperatures above 1600° F. Annealing should be performed at a temperature between 1300° F and 1600° F. Care should be taken when choosing the anneal temperature and time at temperature for this can greatly influence the mechanical properties and structure of the material.
Nickel 200/201 can be easily welded by conventional welding, brazing, and soldering processes with the exception of the oxyacetylene process.
Nickel 200/201 ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Fitting |
|---|---|---|---|---|---|---|
| B161 | B622 | B161 | B622 | B162 | B160 | B163 |
Mechanical Properties
Room Temperature properties of Various Products
| Product Form | Condition | Tensile (ksi) | .2% Yield (ksi) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|---|
| Rod & Bar | Hot Finished | 60-85 | 15-45 | 55-35 | 45-80 |
| Rod & Bar | Cold Drawn/Annealed or Hot-Finished/Annealed | 55-75 | 15-30 | 55-40 | 45-70 |
| Plate | Hot-Rolled/Annealed | 55-80 | 15-40 | 60-40 | 45-75 |
| Sheet | Annealed | 55-75 | 15-30 | 55-40 | 70 max |
| Tube & Pipe | Seamless Annealed | 55-75 | 12-30 | 60-40 | 70 max |
